Elrandos Dashboard - sensor module
Wireless external sensor module for Elrandos Dashboard and Dashboard V2. Oil or fuel pressure and temperature, boost pressure, AFR, refreshed every 200 ms. DIY kit.
About the product

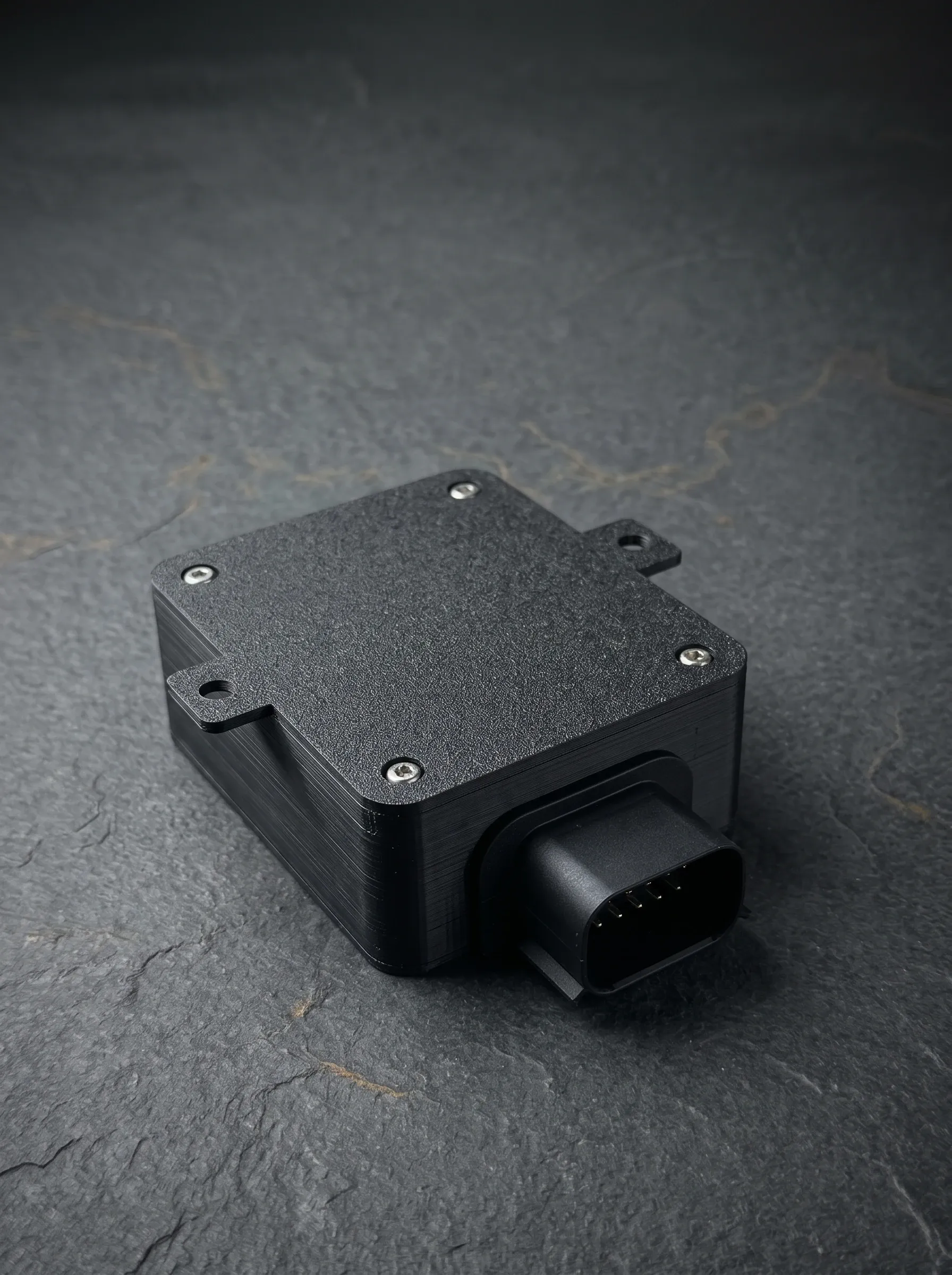

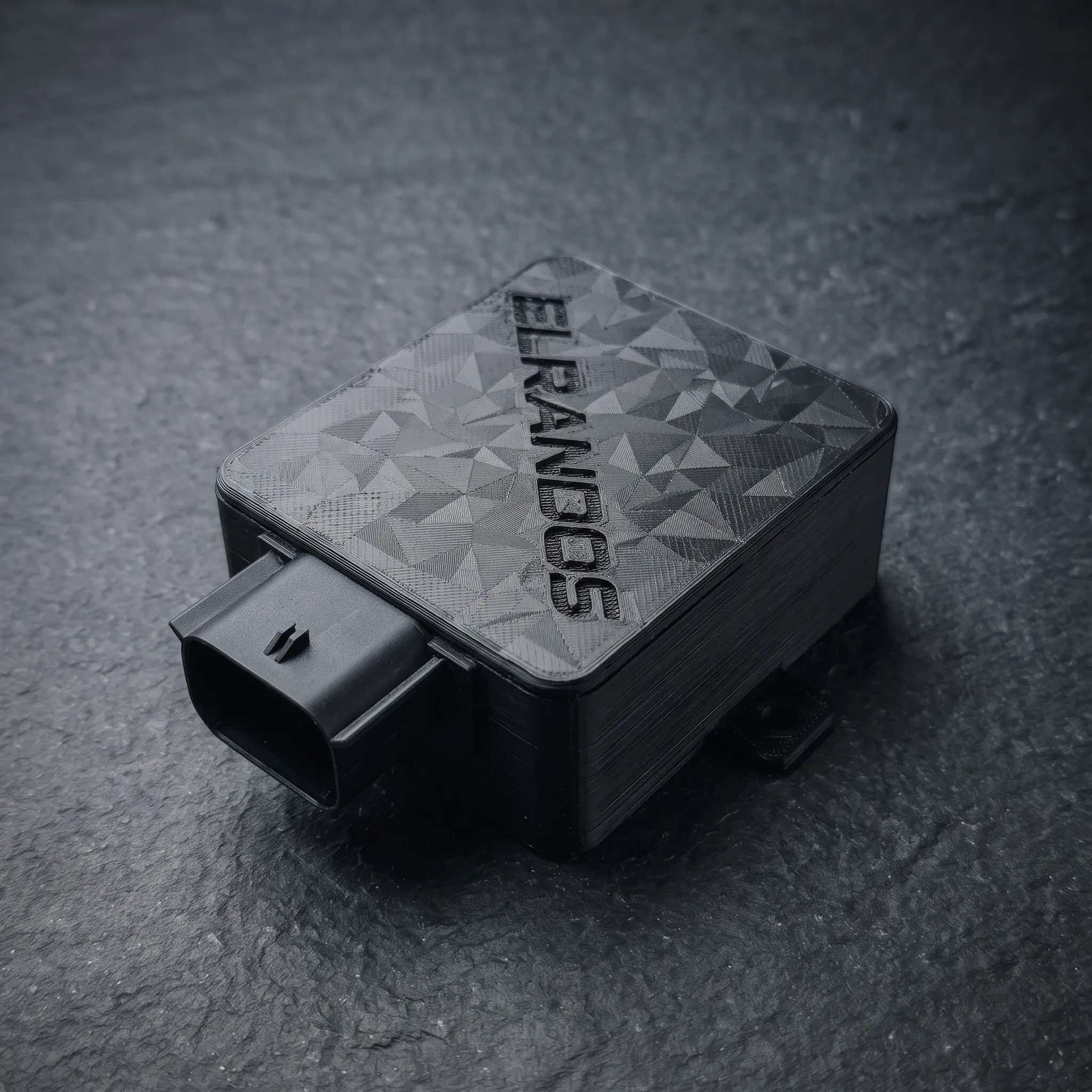

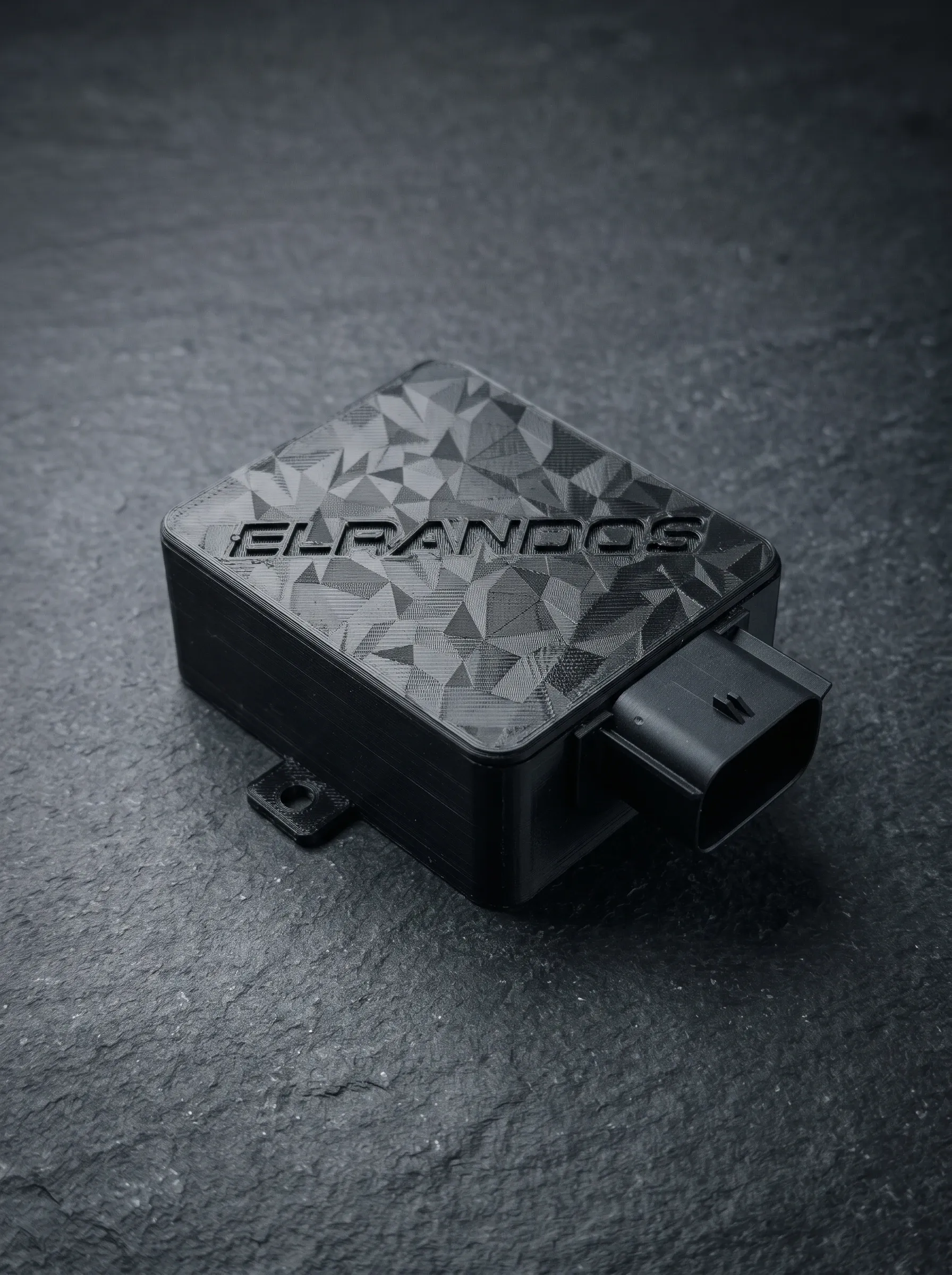

The Elrandos sensor module is a wireless extension for the Elrandos Dashboard gauge that lets it show readings the ECU does not provide. It connects to a Bosch 0 261 544 01F sensor, which measures pressure and temperature at the same time - e.g. of oil or fuel.
Compatibility: Elrandos Dashboard and Elrandos Dashboard V2. The module links to the gauge wirelessly, with no signal wiring between them - all it needs is 12 V from the car.
The module is part of the Elrandos system and works exclusively with an Elrandos Dashboard or Elrandos Dashboard V2 gauge - that is where all readings are displayed. The module has no display of its own and does not work with third-party devices, so it requires one of the Elrandos gauges to operate.
Two input configurations: 2× Bosch 0 261 544 01F sensor (e.g. oil and fuel), or 1× Bosch sensor + 1 Bosch NTC temperature sensor with the 2.5 kΩ / 20 °C characteristic (e.g. 0 280 130 026 - gearbox or differential) + 1 0-5 V input. The 0-5 V input accepts e.g. a Bosch MAP boost sensor 0 261 230 119 or the 0-5 V analogue output of an AFR (wideband) controller.
Measurement: pressure 0-10 bar, temperature -40 to 150 °C. Readings every 200 ms - the display keeps up with changes in real time.

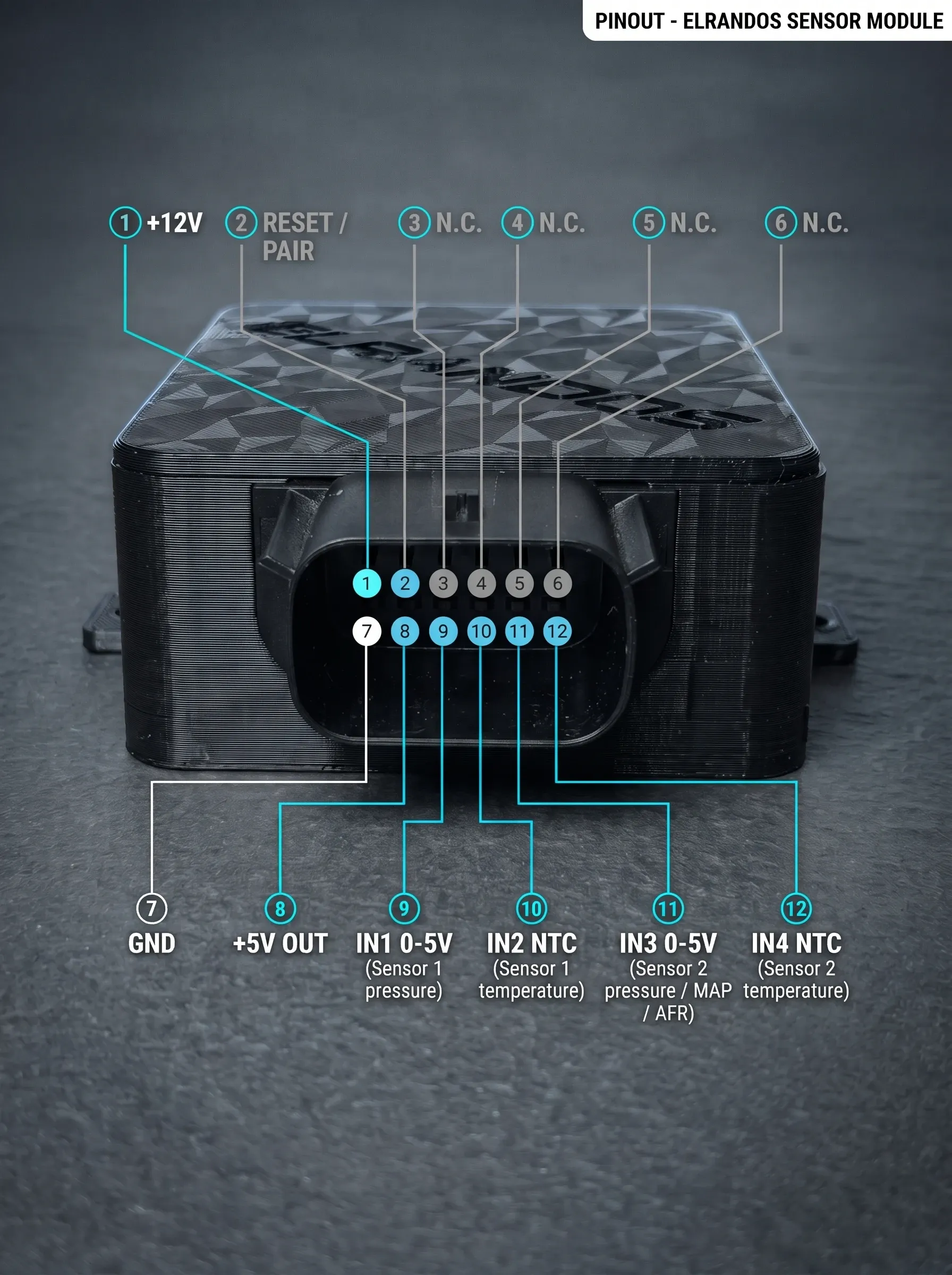

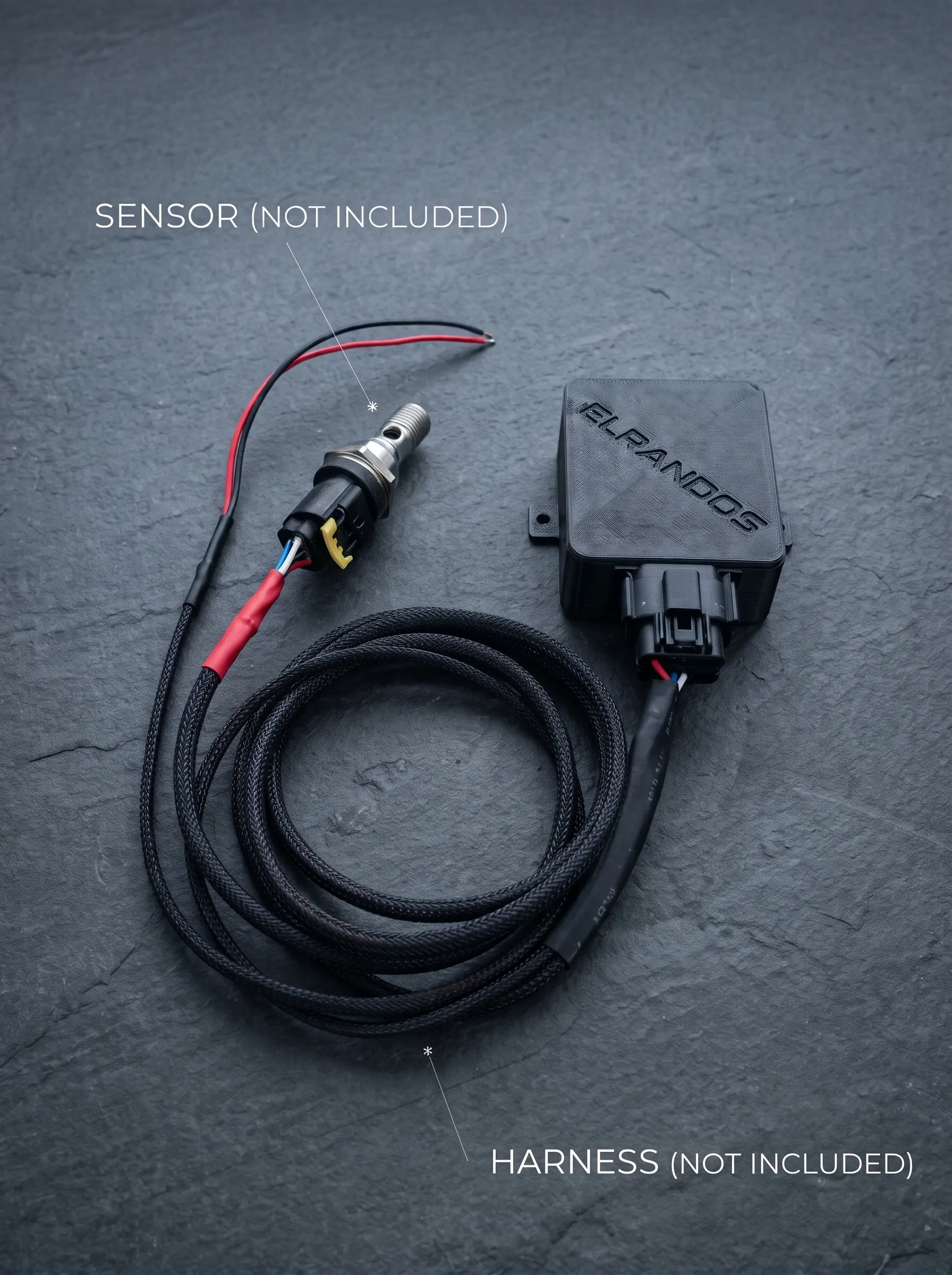

DIY kit - you build the wiring harness and install the module in the car yourself. Included: the module, a 12-pin connector with crimp terminals, a plug for the Bosch sensor and the connector pinout diagram. Sensors are not included. Pairing with the gauge is started from its settings.
Important: the module has no IP rating. Mount it where it is protected from splashes and water, e.g. inside the cabin.

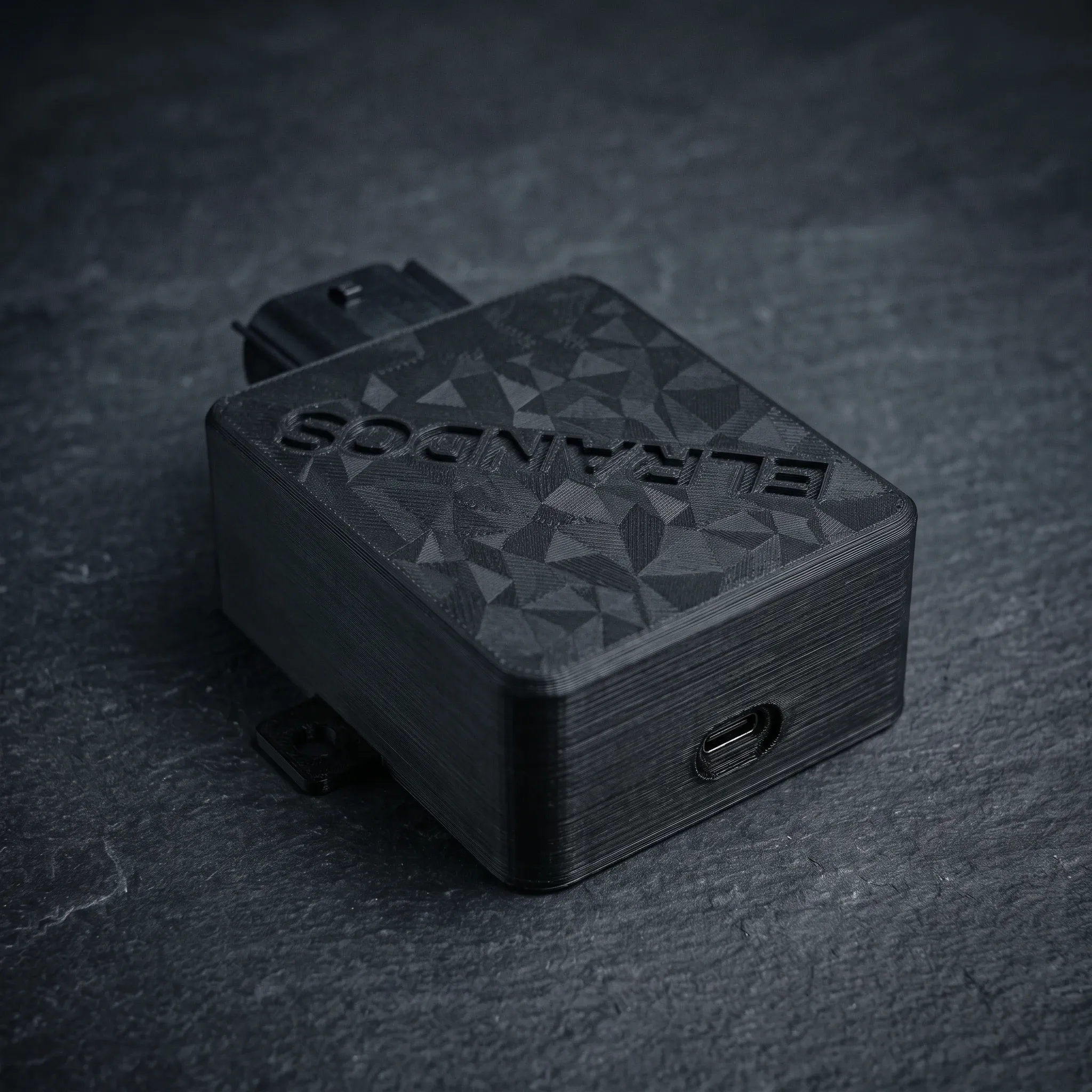

Dimensions: 65mm x 80mm x 30mm.
